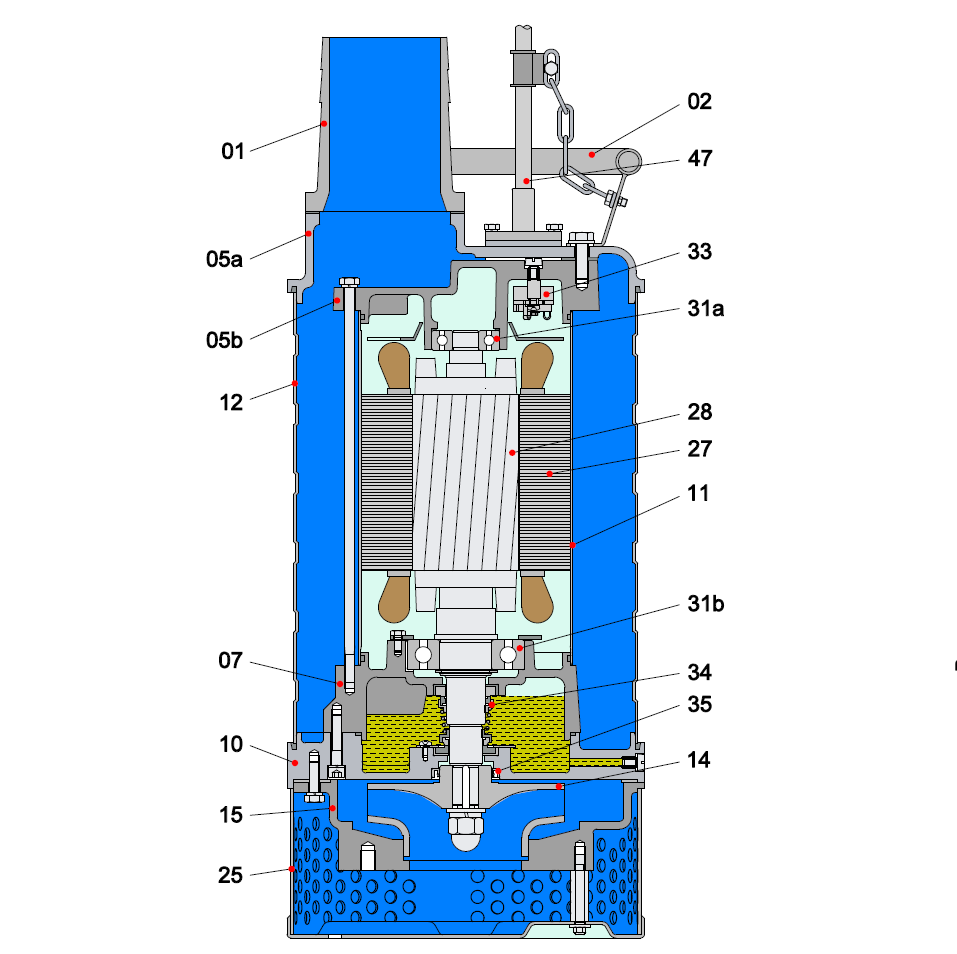

Structure Characteristics:
The water-cooled motor ensures a long service life during continuous or intermittent operation, which is highly efficient and energy-saving. The dry motor with thermal auto-cut can prevent the motor from overheating. Greatly increased maximum submersion depth due to mechanical seal resistant to high pressure. The cast iron upper cover and strengthened AISI304SS pumps casing can provide better anti-hitting performance. The impeller is designed by 3D technology and made of chrome steel, which can improve the efficiency and extend the product lifetime. The KC pump strainer can be easily removed for maintenance.
Application:
Aquiculture water supply and drainage Water supply for agriculture irrigation systems and underground water pumping Extraction of water from rivers, lakes and reservoirs

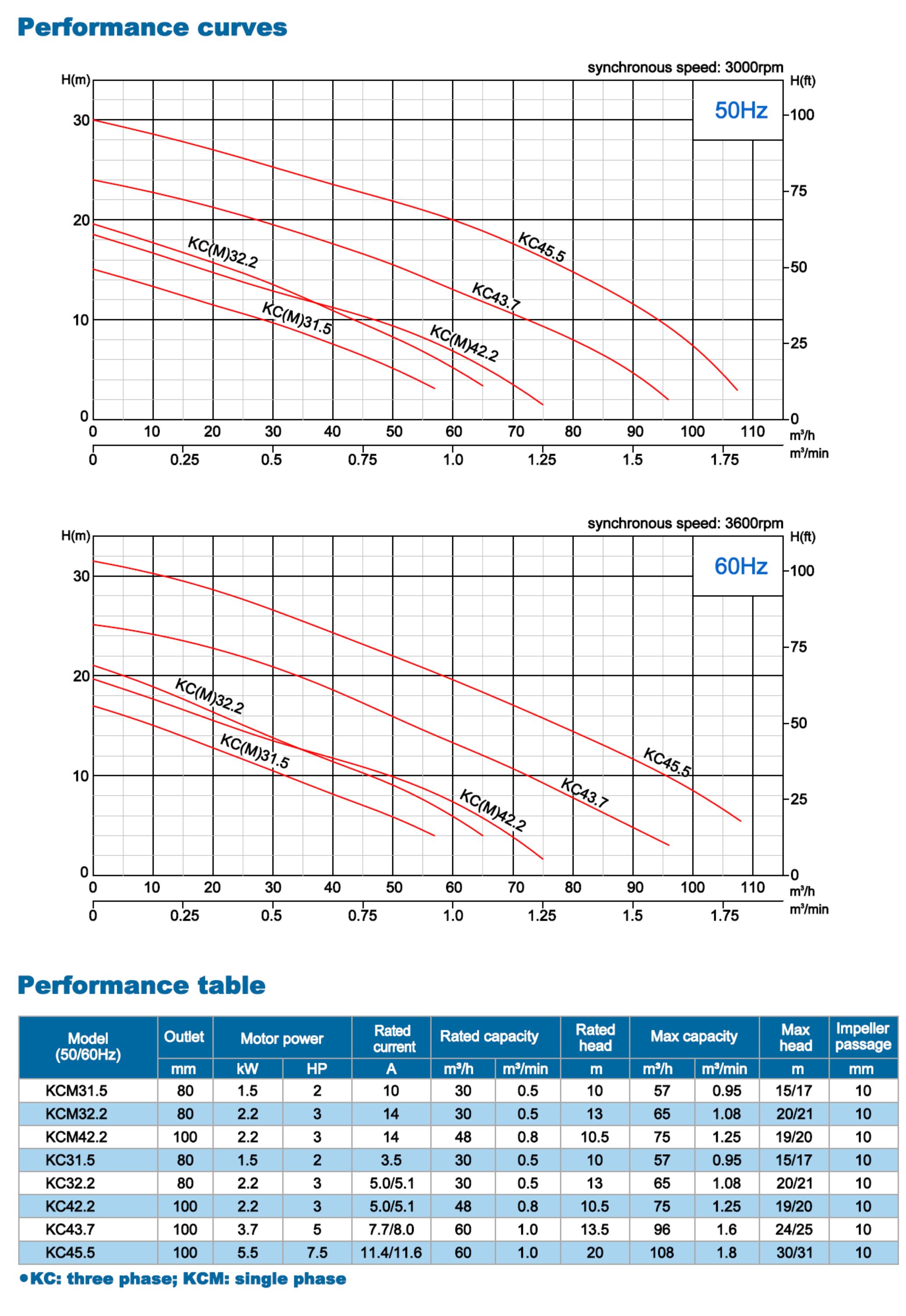

Specification:
Capacity: up to 108 m³/h
Head: up to 31 meters
Power: 1.5kW (2HP) to 5.5kW (7.5HP)
Power supply: single phase 220V ± 10%, 50Hz, 60Hz
three phase 400V ± 10%, 50Hz
380V ± 10%, 60Hz
Insulation class: F
Protection class: IP68
Cable length: 8m
Water temperature: up to 40℃
Max.water depth: 25m
