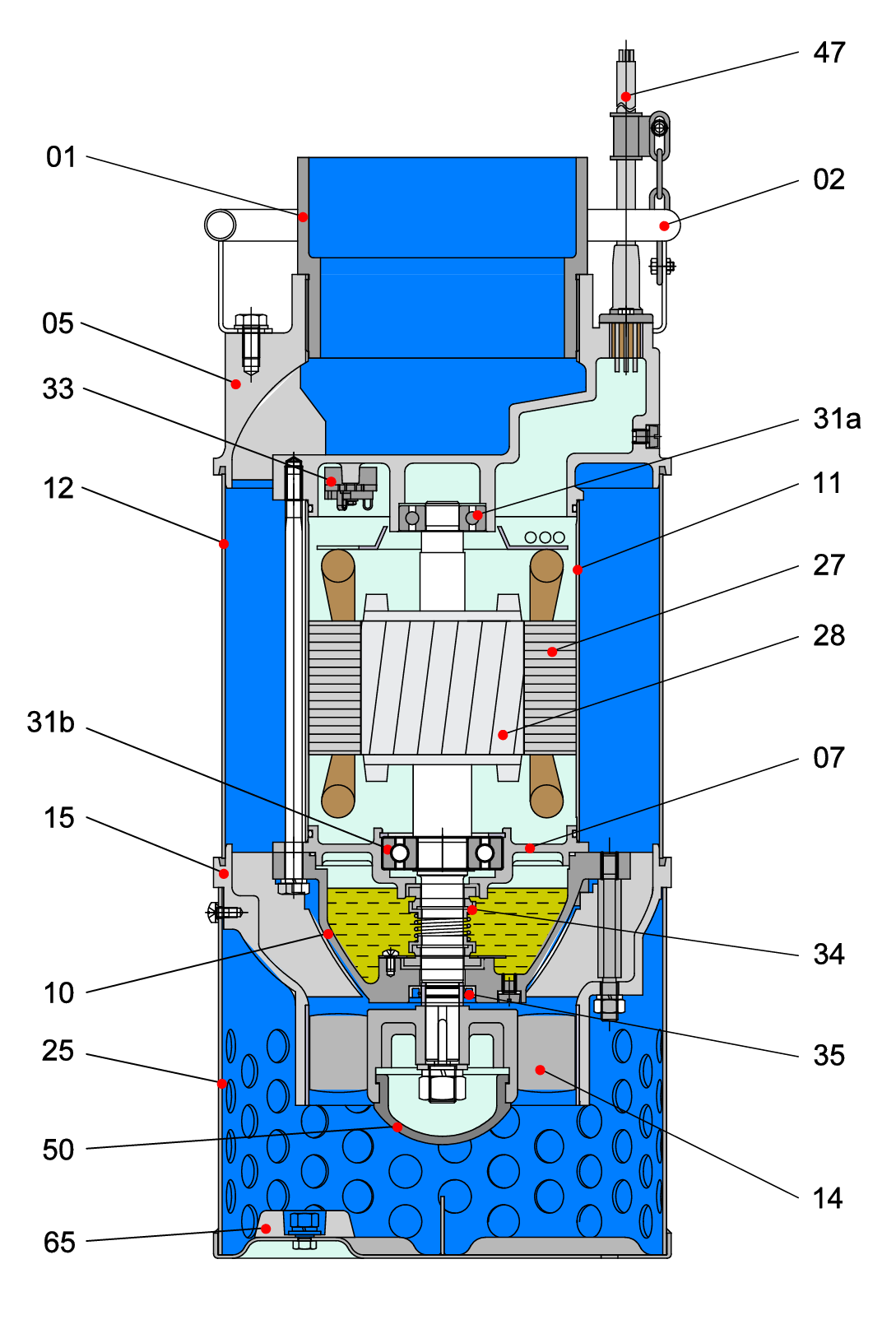

Structure Characteristics:
KA series is an axial-flow or mixed-flow energy-saving pump with low head and large flow. The built-in channel structure pump draws water from the bottom and discharges water to the top through the side channel of motor, providing the best motor cooling and allowing long term continuous operation at low water level. AISI444 stainless steel impeller, with superior wear and corrosion resistance, has a longer service life than bronze impeller in seawater or silty water application. The motor casing and rotor shaft are made of AISI316L, which is even more resistant to seawater corrosion. The entire series is equipped with standard anodized aluminum block, which effectively slows down the corrosion of pump components from exposing to seawater and extends the service life of the pump.
Application:
Capacity: up to 660 m³/h
Power supply: single phase 220V ± 10%, 50Hz, 60Hz
three phase 380V ± 10%, 50Hz, 60Hz
Water temperature: up to 40°C
Insulation class: F (0.75～2.2kW)
H (5.5～15kW)
Protection class: IP68
Cable length: 6m (0.75kW)
8m (1.5～15kW)
Max water depth: 10m
Specification:
Aquaculture water supply and drainage of seawater or freshwater Agriculture water supply, drainage and irrigation Water supply and drainage of ponds and lakes Landscaping Special features on request Other voltages The length of cable is optional
