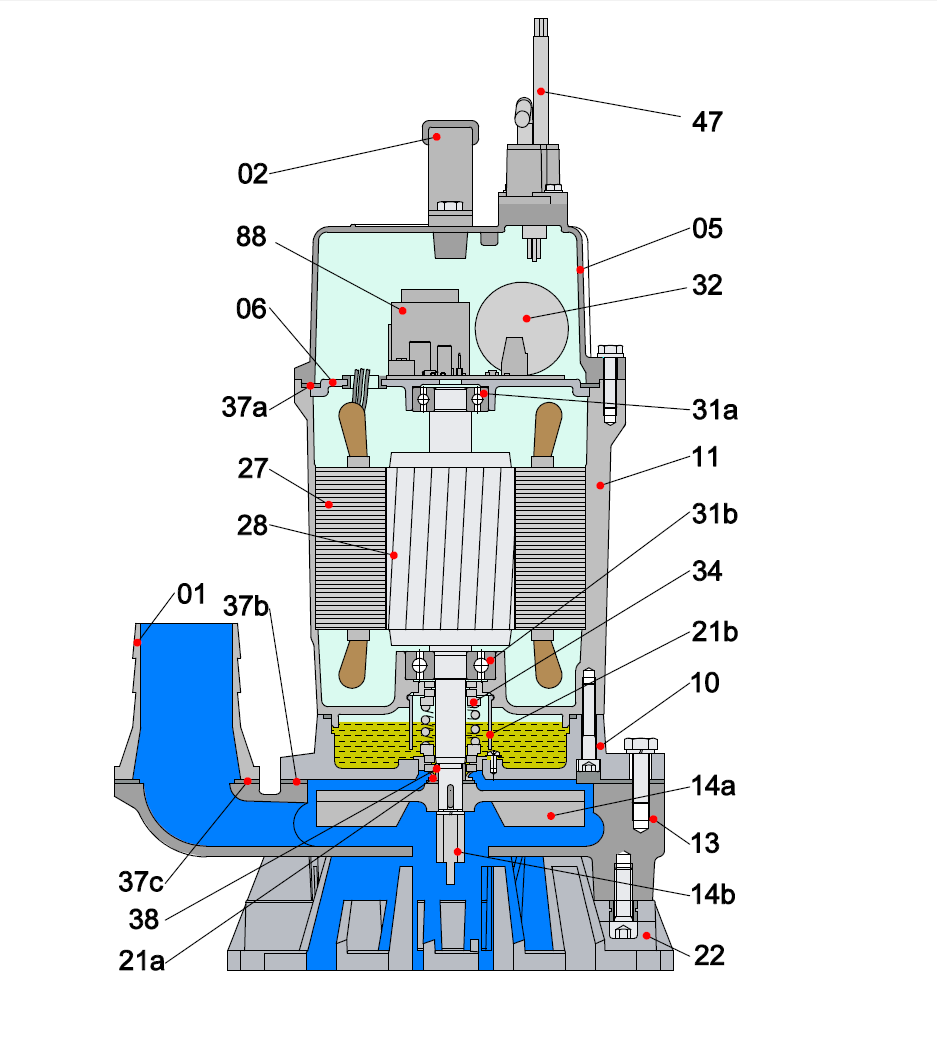

Structure Characteristics: Semi vortex impeller design minimize the clogging situation for maximum durability and maintaining pump performance. Built-in shaft mounted agitator prevents the ‘air lock’ and reduces the clogging situation. The pump can operate automatically with bulit-in intelligent control system, thus achieve low total energy costs.
The pump stops working within 60s after water level reaches below the probe. When the water level rises to reach the electric probe, pump starts operating again;
Automatically stop the pump in event of overload, abnormal voltage and recover 5min later. The pump stops working within 0.1s when overload is serious.
Protect against impeller jam, thus prevent accidental damage.
Rapid assessment on pump operation and malfunction diagnosis.
Application: Civil engineering, construction sites, basements or other utility pits, rainwater, mud water and high-viscosity fluid.
Specification: Water temperature: up to 40℃
PH: 6.5 to 8.5
Power supply: single phase 220V±10%, 50Hz 60Hz
Insulation class: F
Protection class: IP68
Cable length: 8m
Max water depth: 10m
Special features on request
Other voltages
