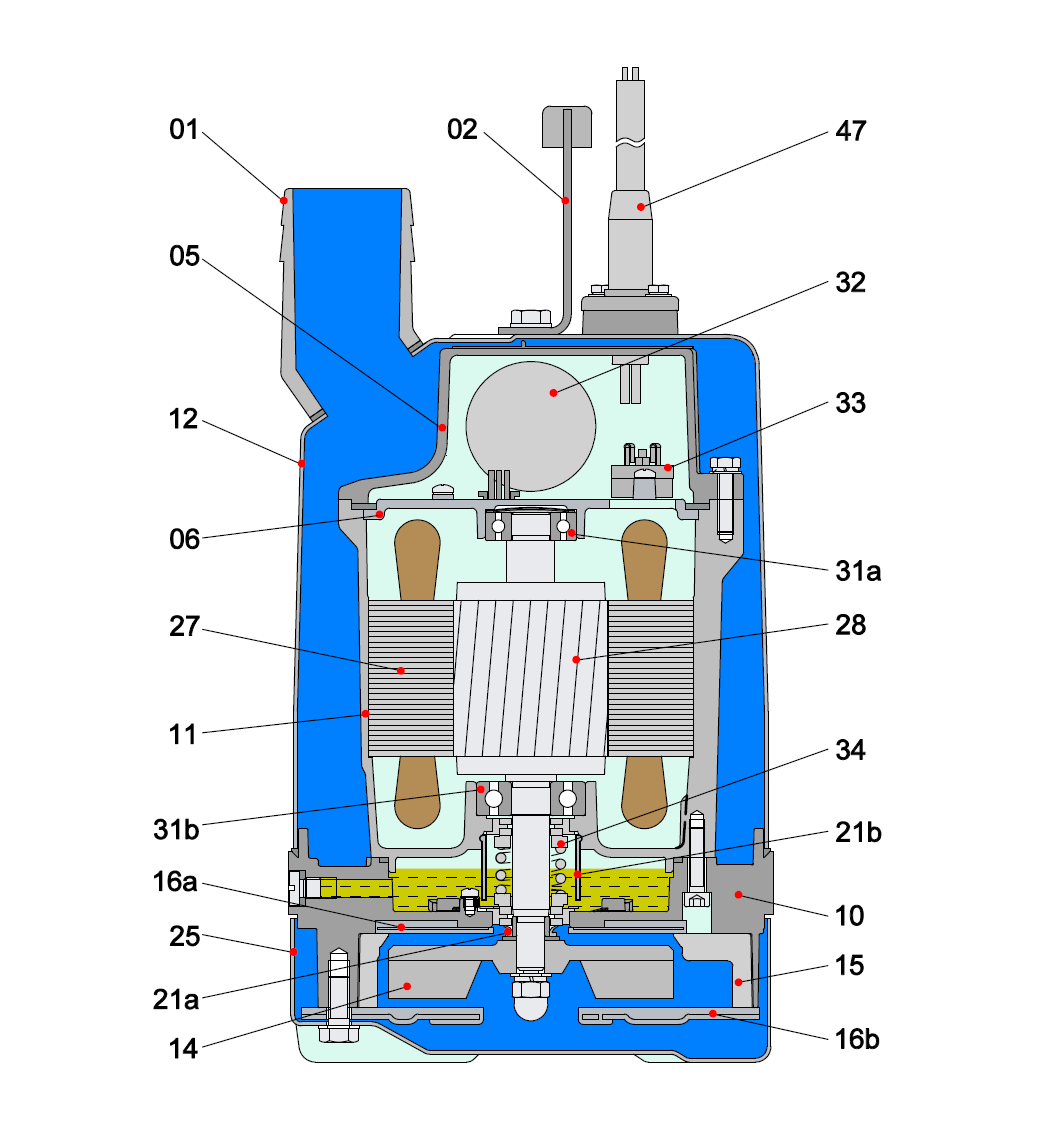

Structure Characteristics: The FBM series is a portable small submersible drainage pump with lightweight design. The small outer diameter allows it to be used in an 8-inch well. The components of FBM series are made of wear-resistant rubber and ductile iron which is with excellent durability.
The water is sucked from the bottom and discharged from the top through the inner layer between the motor case and the water jacket, which provide the highest cooling efficiency for the motor and thus allow continuous operation at low water level. A large gap is between the semi open impeller and the pump body, so the impeller will not easily be stuck by mud or sand. The hose coupling could be installed vertically or obliquely to prevent the soft hose pipe from folding or bending.
Application: Civil engineering, building sites, basements or other utility pits, rainwater and mud water.

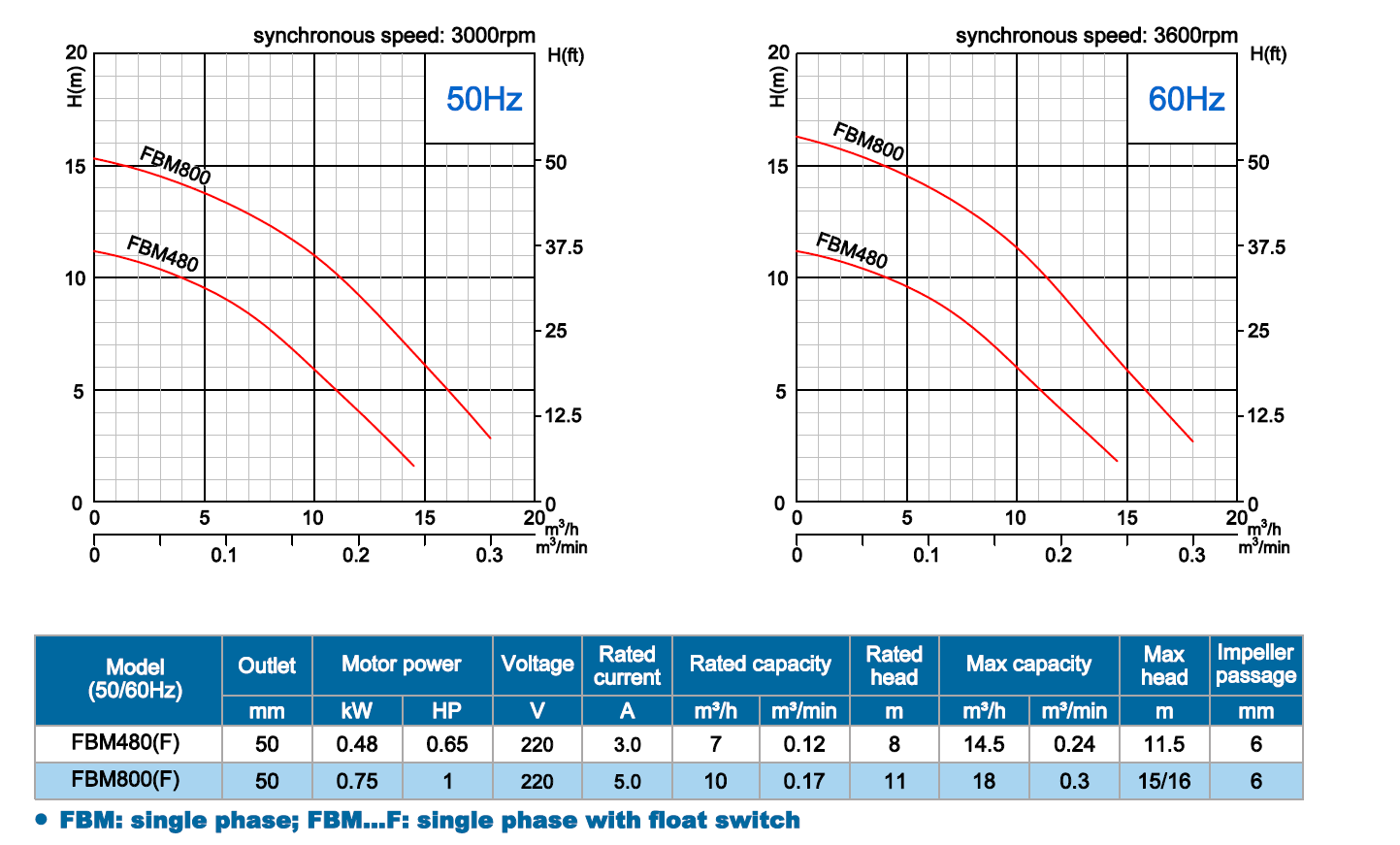

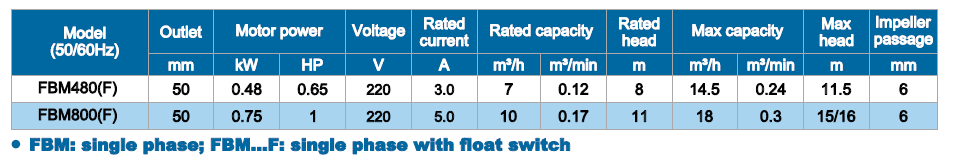

Specification: Water temperature: up to 40°C
PH: 6.5 to 8.5
Power supply: single phase 220V ± 10%, 50Hz, 60Hz
Insulation class: F
Protection class: IP68
Cable length: 8m
Max water depth: 10m
