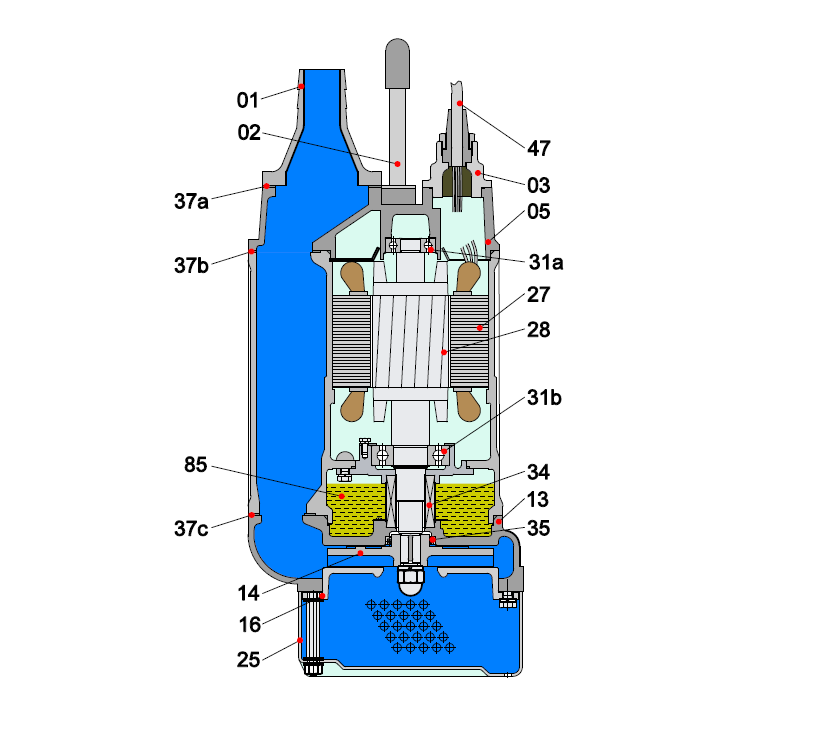

Structure Characteristics:
The KBZ-HT series high temperature electric drainage pump can handle liquids up to 80 degress Celsius.
The insulation level, rubber material, bearing and lubrication of the motor are upgraded on the basis of the standard type,（ handing liquids up to 40 degress Celsius）.
Application:
Specification:
Discharge bore : 50-150mm
Power:1.5kW (2HP) to 15 kW (20HP)
Insulation class : H
Protection class : IP68
Water temperature : up to 80℃
PH : 6 to 10
Power supply :
three phase 400V ±10%, 50Hz
three phase 380V ±10%, 60Hz
Capacity : up to 150m³/h
Head : up to 52m
Maximum immersion depth : 25m
Cable Length : 8m
