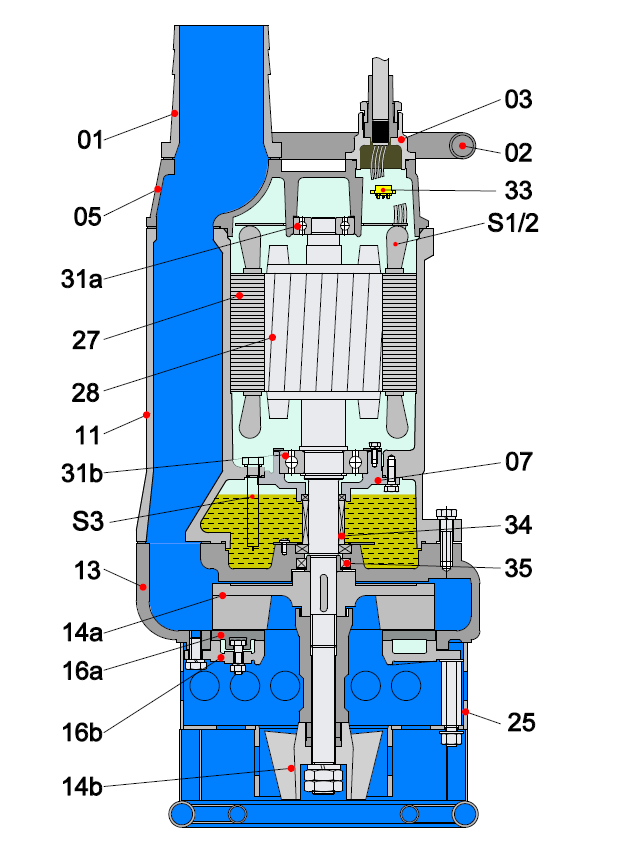

Structure Characteristics:
KBS series is submersible slurry pump with 4-pole motor for increased lifetime and greater convenience. High chrome alloy impeller combined with agitator is designed for pumping heavy slurry. Slim pump body with a top discharge design enables pump installation in narrow spaces. The pump is also designed for pumping bentonite mixed water in foundation works or muddy water in civil engineer works.
Application:
Civil engineering Mines, quarries, coal ore & slurries Sewage treatment plants General pumping purposes Pumping fluid: sludge, liquid-containing mud and bentonite
Specification:
Capacity: up to 390m³/h
Head: up to 39 meters
Discharge: 80mm(3'') to 200mm(8'')
Power: 4kW (5.5HP) to 37 kW (50HP)
Power supply: three phase 380V ± 10%, 50Hz
380V ± 10%, 60Hz
Insulation class: F
Protection class: IP68
Cable length: 8m
Water temperature: up to 40℃
Max. water depth: 15m
