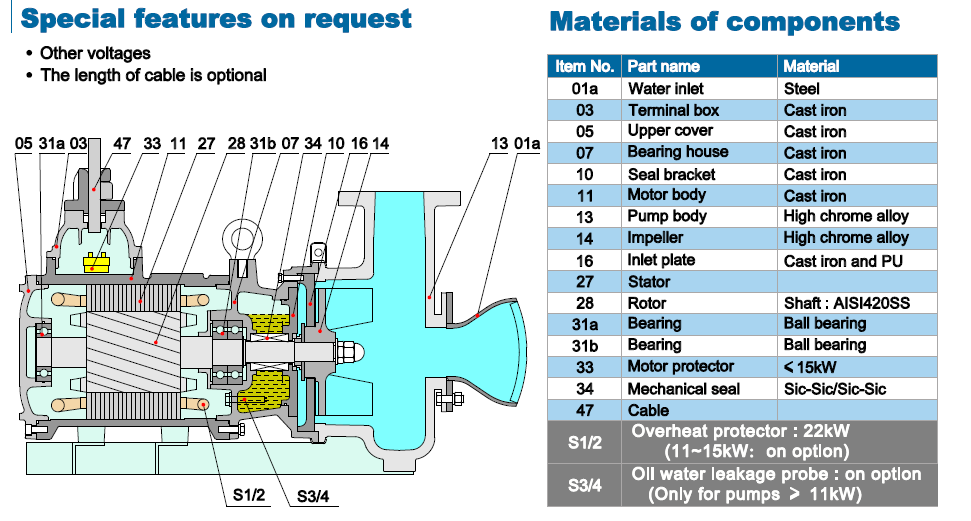

Structure Characteristics:
The HVS submersible sludge pump is specifically designed for pumping in harsh environments containing silts and other abrasive materials. Each component fully reflects the design concepts of high durability, reliability and ease of maintenance.
HVS submersible sludge pump adopts H-class motor, high wear-resistant mechanical seal, high wear-resistant alloy impeller and pump body, high wear-resistant PU inlet plate. The vortex impeller allows large solids to pass.
Application:
Mining industry: specialized in handling solids and slurries from coal, gold, platinum and diamond mining process Sewage and wastewater transport: capable of transporting raw sewage reliably Power generation industry: discharge water containing fly ash and coal efficiently Construction industry: drainage of construction silt water, pumping of underwater sand and cleaning of sedimentation tank Chemical industries: designed for applications involving handling of abrasive raw materials

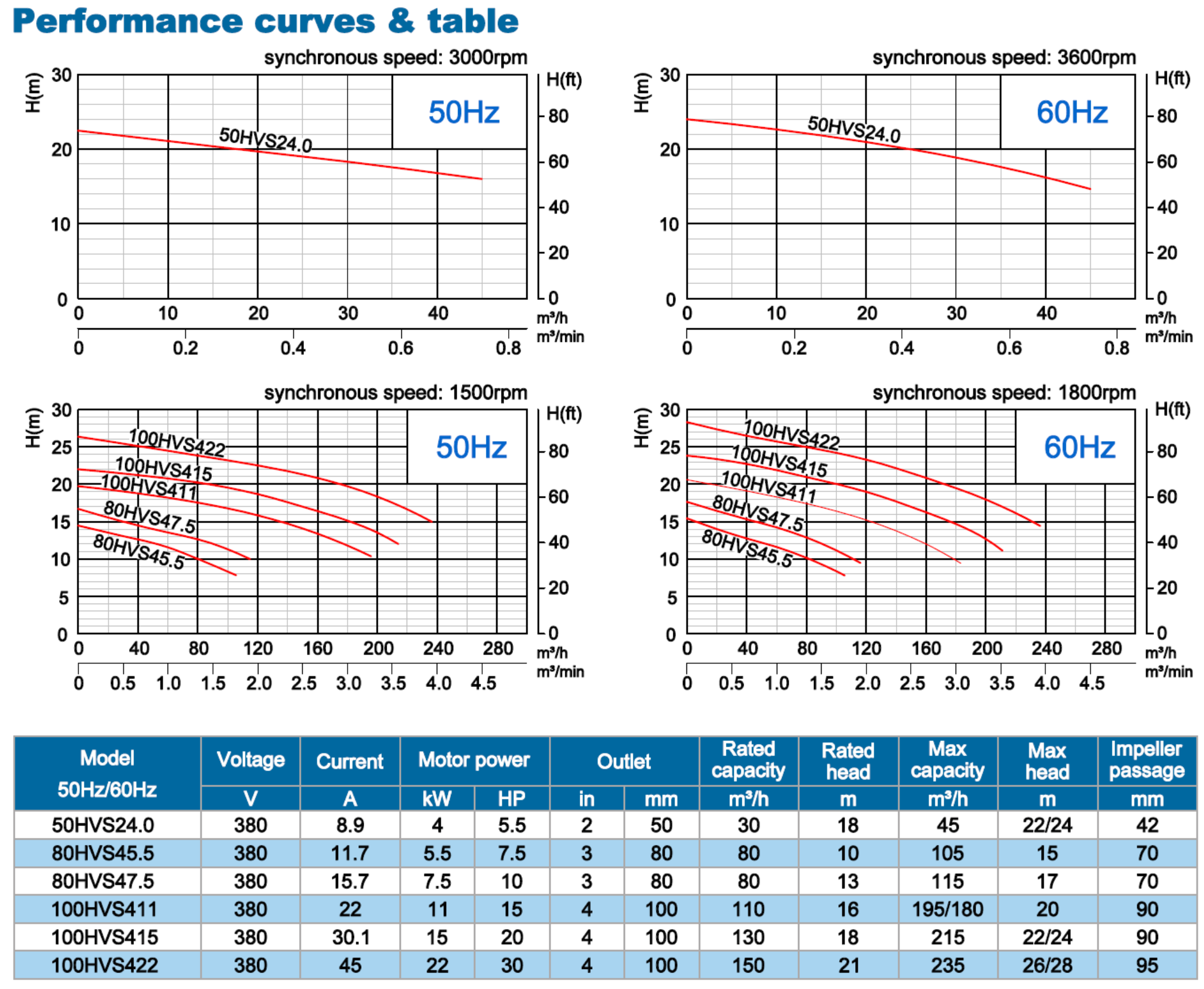

Specification:
Capacity : up to 235m³/h
Head : up to 28m
Density of liquid : up to 1.3g/cm³
Power : 4kW(5.5HP) to 22kW(30HP)
Power supply : three phase 380V ± 10%, 50Hz
three phase 380V ± 10%, 60Hz
Insulation class : H
Protection class : IP68
Cable length : 10m
Water temperature : up to 60℃
PH : 6 to 10
Maximum immersion depth : 15m
