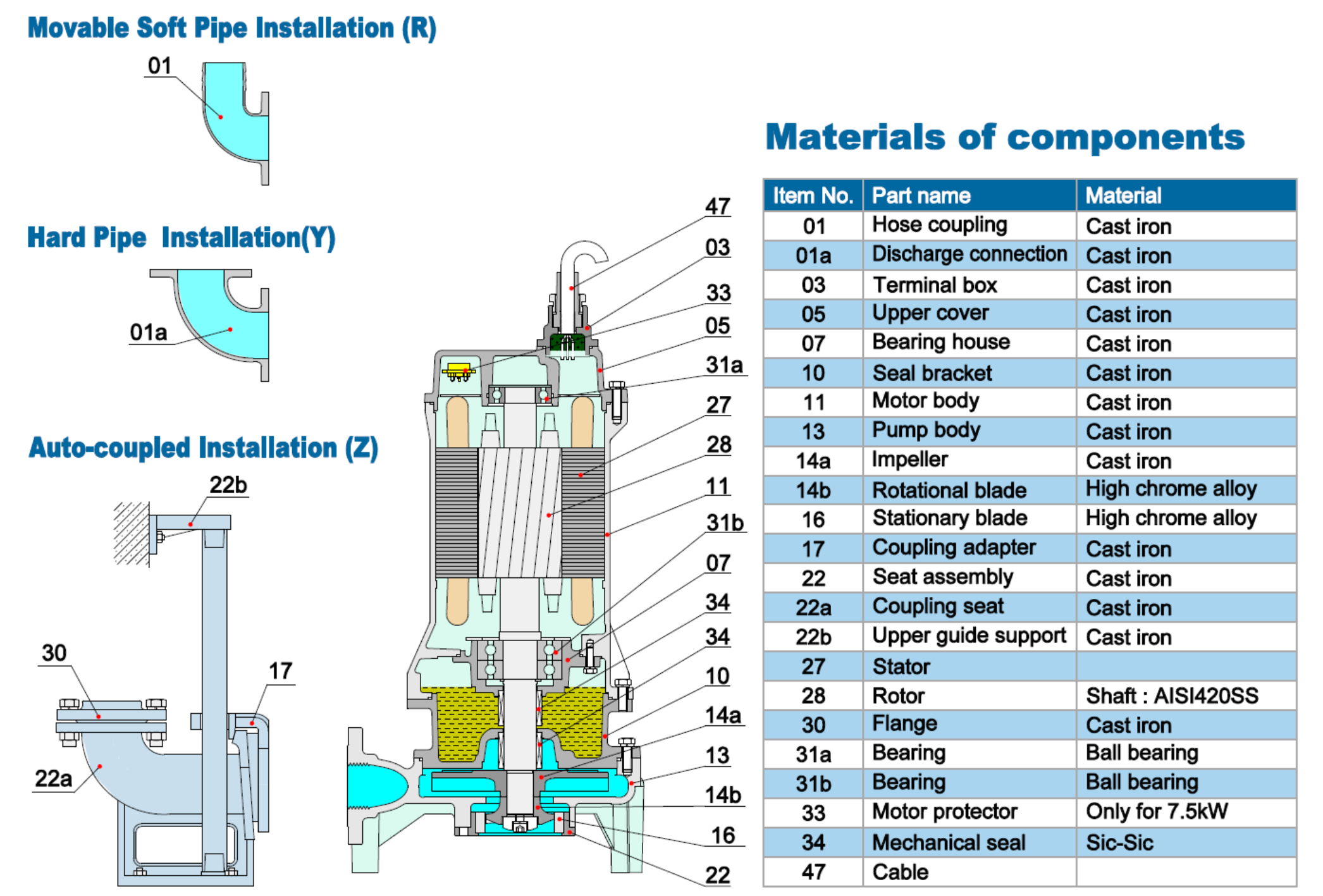

Structure Characteristics:
A grinding mechanism is provided at the suction inlet of the pump. Flow in suspended solids are cut into small pieces and pumped out by a vortex impeller without a fear of clogging in the discharge pipe.
Application:
Transferring the sewage under high pressure in small scale sewer systems Transferring the domestic and building sewage Collecting and transferring the wastewater in factories Transferring the wastewater from the waste-water tanks of hospitals, hotels, department stores, etc. Pumping the disposal units requiring grinding.

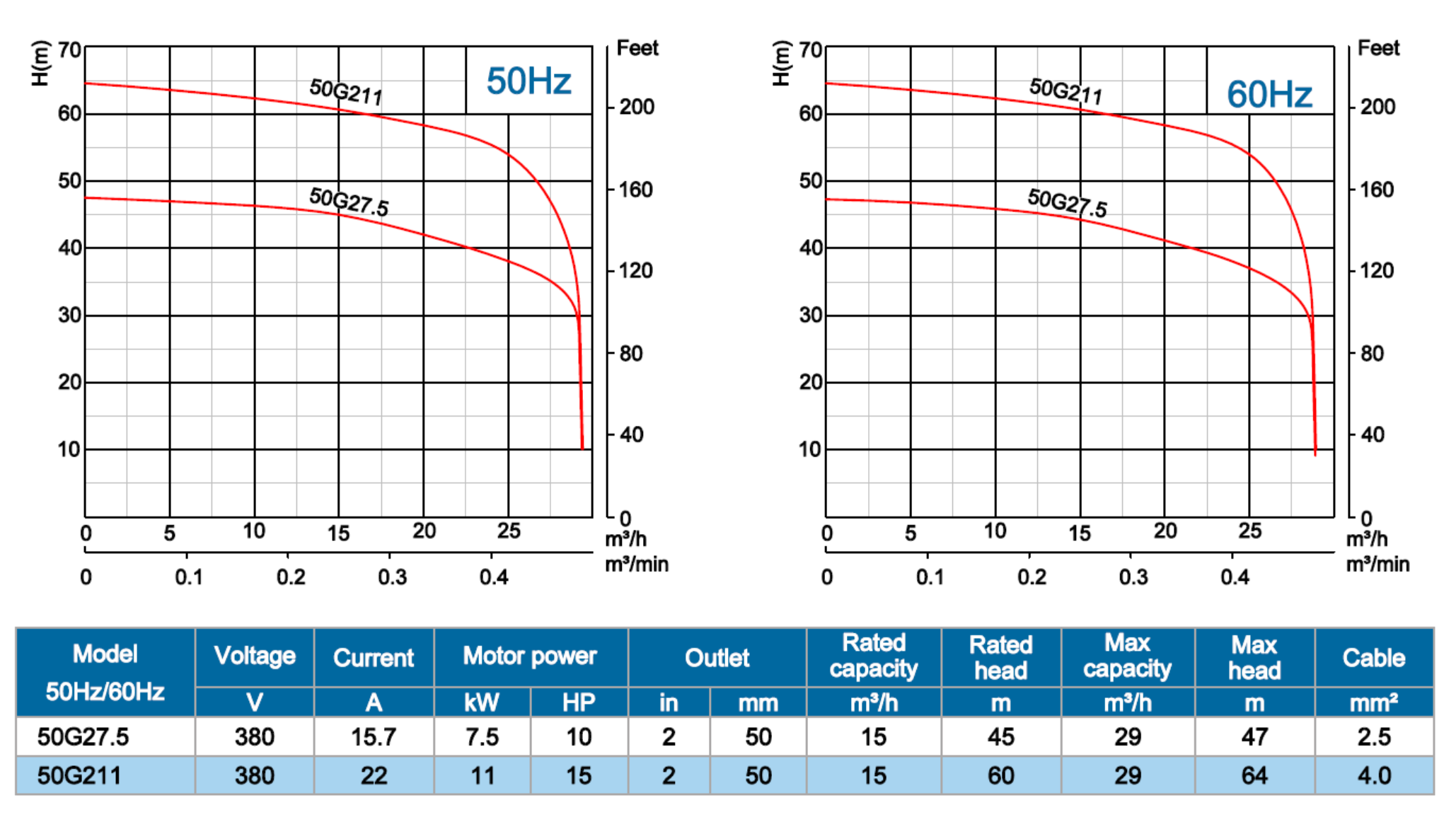

Specification:
Insulation class: F
Protection class: IP68
Water temperature: up to 40℃
PH: 6 -10
Density of liquid: 1.3g/cm³
Power supply: three-phase 380V±10%, 50Hz
three-phase 380V±10%, 60Hz
Motor protection:7.5kW built in
Capacity: up to 29m³/h
Head: up to 64m
Cable length: 8m
Max water depth: 10m
