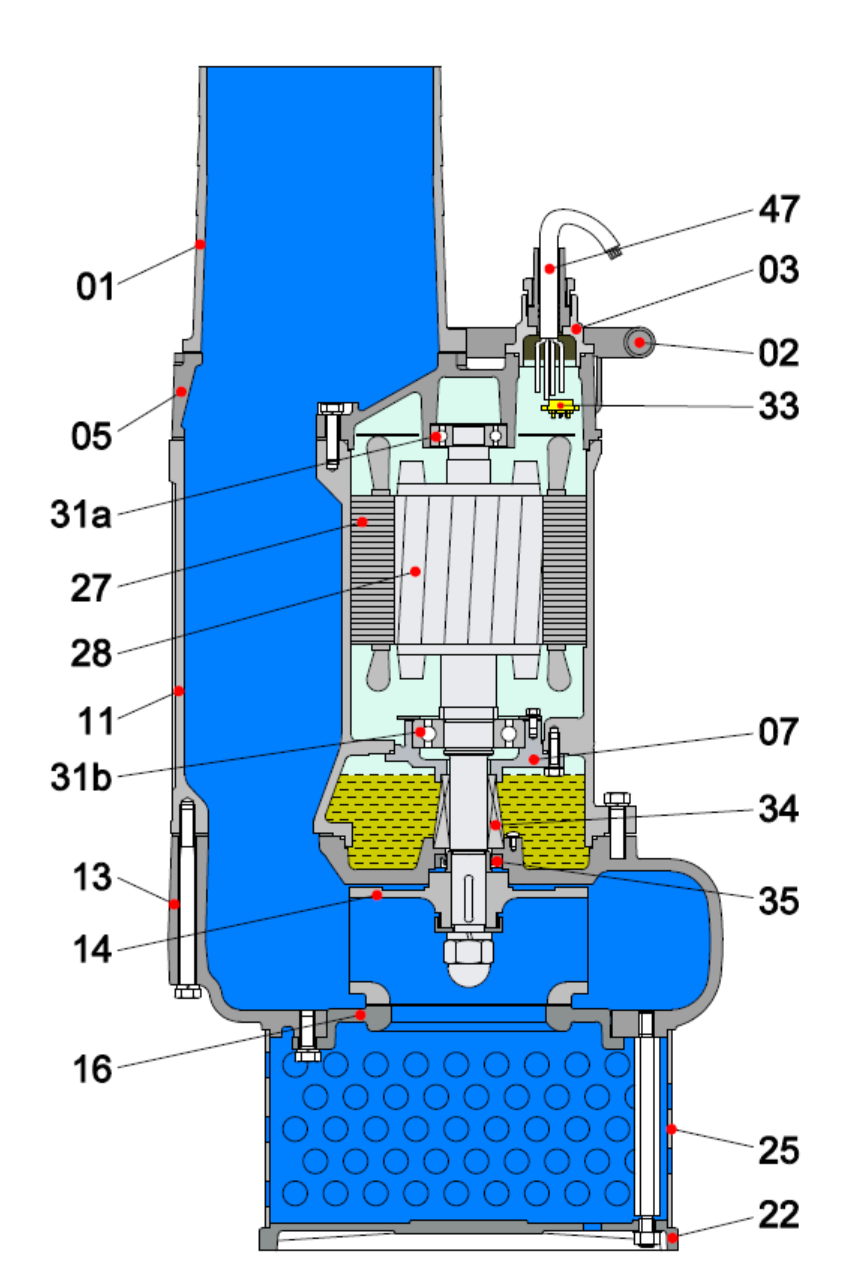

Structure Characteristics:
High flow, low output drainage pump to reduce energy consumption. KBL series energy-efficient model is a three-phase high-power, heavy-duty cast iron structure submersible slurry pump. ln high-flow applications, it is more energy efficient than the KBS series. Low speed motor and cast iron pump body presents superior durability in the most demanding conditions. Even when the motor is exposed to air, the top-discharge, side-flow design ensures efficient motor cooling.
Application:
Civil engineering Building sites Basements or other utility pits Rainwater and mud water

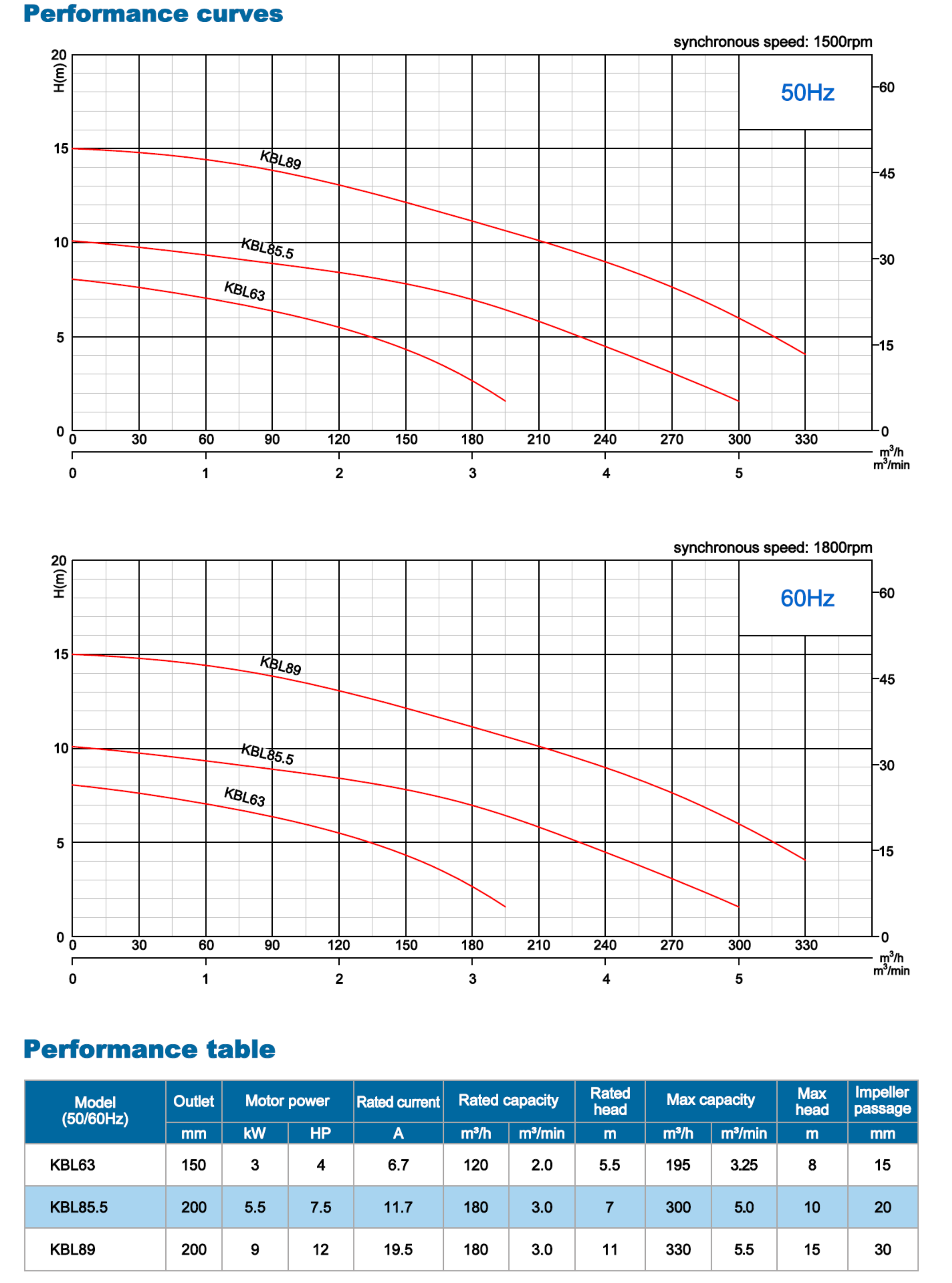

Specification:
Capacity: up to 330 m³/h Head: up to 15 meters Power: 3 kW (4HP) to 9 kW (12HP) Power supply: three phase 380V±10%,50Hz, 60HZ Insulation class: F Protection class: IP68 Cable length: 8m Water temperature: up to 40°C Max. water depth: 15m
